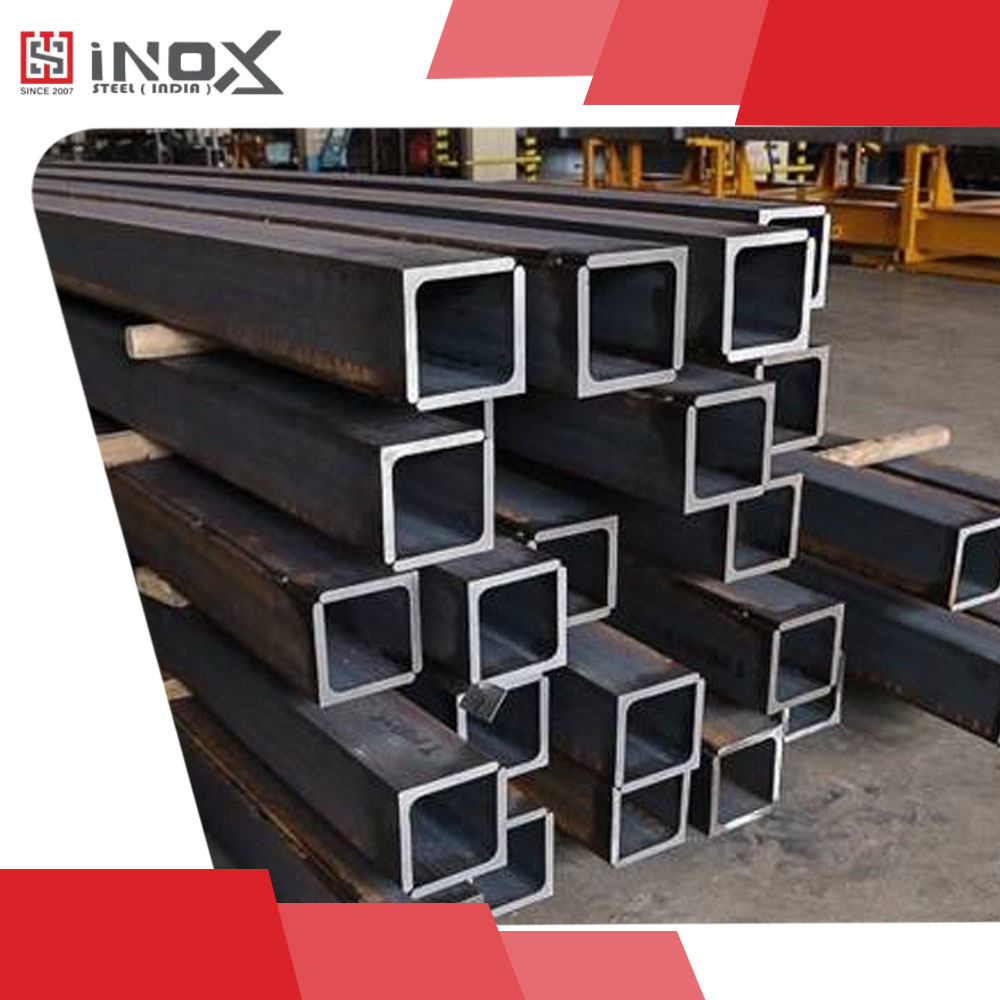

Inox Steel India is a recognized manufacturer and global supplier of EN 10219 Hollow Sections, including Square (SHS), Rectangular (RHS), and Circular (CHS) profiles engineered for structural applications requiring high strength, dimensional accuracy, and excellent toughness. Manufactured in accordance with EN 10219-1 & EN 10219-2, these cold-formed welded structural hollow sections are widely used in engineering structures, offshore platforms, machinery fabrication, modular construction, cranes, towers, and load-bearing frameworks across Europe, the Middle East, Africa, and Asia.
EN 10219 specifies performance requirements for non-alloy and fine-grain structural steels such as S235JRH, S275JRH, S355J0H, and S355J2H, known for their mechanical reliability, weldability, and impact strength. Grades with suffixes J0H and J2H undergo Charpy impact testing at 0°C and –20°C, ensuring high toughness in cold and demanding environments.
Inox Steel India offers EN 10219 hollow sections in a comprehensive size range from 20×20 mm to 400×400 mm (SHS), 30×20 mm to 500×300 mm (RHS), and 21.3 mm to 610 mm OD (CHS) with thicknesses up to 16 mm. Options include bare black finish, pickled & oiled finish, and galvanized coatings for superior corrosion protection.
Our EN 10219 hollow sections are trusted by EPC contractors, structural designers, steel fabricators, and OEM manufacturers for projects requiring European-standard quality, certified mechanical properties, and exceptional performance under static and dynamic loading conditions.
EN 10219 hollow sections are produced through a cold-forming and precision welding sequence designed to meet stringent European quality and toughness standards.
1️⃣ Slit Coil Preparation
High-quality structural steel coils (S235 / S275 / S355) are slit to precise widths based on the final SHS, RHS, or CHS profile.
2️⃣ Cold Forming Process
Slit strips are gradually shaped through automated roll-forming stands into square, rectangular, or circular profiles with controlled corner radii and thickness uniformity.
3️⃣ High-Frequency Induction Welding (HFIW)
Edges are joined using HF welding to produce a consistent, strong, and reliable weld seam.
4️⃣ Weld Bead Removal & Heat-Affected Zone Control
Internal and external weld scallops are scarfed, and heat-affected zones are controlled to meet EN 10219 mechanical requirements.
5️⃣ Dimensional Sizing and Calibration
Sections pass through precision sizing mills to achieve exact dimensions, straightness, squareness, and tolerances as per EN standards.
6️⃣ Impact-Test Grade Processing (J0H / J2H)
Mechanical and impact-strength properties are controlled to ensure performance at low temperatures.
7️⃣ Surface Finishing – Bare, Pickled, Oiled, or Galvanized
Sections may be supplied in uncoated form or with protective galvanization depending on project requirements.
8️⃣ Final Inspection & Testing
Tensile testing, impact testing, weld integrity testing, and dimensional checks ensure conformity to EN 10219.
This manufacturing flow ensures high-quality structural hollow sections suitable for demanding European and international engineering applications.
These attributes make EN 10219 hollow sections the preferred choice for structurally demanding and safety-critical applications.
Grades & Standards (Technical Comparison)
👉 Already given in the master datasheet above.
Global Market Usage & Geographic Demand
Europe
Widely used in structural engineering, machinery design, modular buildings, offshore structures, and architectural frameworks.
Middle East (UAE, Qatar, Saudi Arabia)
Preferred for large steel structures, equipment frames, warehouses, and heavy industrial projects.
Africa
Used extensively in plant fabrication, bridges, towers, storage structures, and civil engineering.
Asia-Pacific
Applied in cranes, heavy fabrication, construction equipment manufacturing, and pre-engineered buildings.
EN 10219 hollow sections are engineered for structural applications requiring high strength, excellent toughness, and consistent dimensional accuracy. These sections are used widely in cranes, towers, offshore structures, mechanical equipment frames, bridges, and modular buildings.
Below is the structured application breakdown aligned with your reference sample.
🔹 EN 10219 – S235JRH (General Structural Use)
Service Use:
Light frameworks • Fabrication • Storage structures • Supports • Walkways
Key Characteristics:
Good weldability, economical, suitable for non-critical structural applications.
Size Range:
SHS 20×20 to 200×200 mm
RHS 30×20 to 200×100 mm
CHS 21.3 to 168 mm OD
Industry Sectors:
Fabrication • Light engineering • Industrial walkways
🔹 EN 10219 – S275JRH (Moderate Structural Use)
Service Use:
Industrial sheds • Structural frames • Trusses • Platforms • PEB structures
Key Characteristics:
Higher yield strength and improved toughness for moderate loading conditions.
Size Range:
SHS 40×40 to 250×250 mm
RHS 40×20 to 250×150 mm
CHS 33.7 to 273 mm OD
Industry Sectors:
Construction • Commercial buildings • Warehouses
🔹 EN 10219 – S355J0H (High Strength, 0°C Impact Tested)
Service Use:
Cranes • Towers • Machinery bases • Heavy structural components
Key Characteristics:
High yield strength (355 MPa) with Charpy impact guarantee at 0°C.
Size Range:
SHS 40×40 to 350×350 mm
RHS 50×25 to 350×200 mm
CHS 42.4 to 355 mm OD
Industry Sectors:
Heavy fabrication • Mechanical engineering • Infrastructure
🔹 EN 10219 – S355J2H (High Strength, –20°C Impact Tested)
(Premium offshore-grade class)
Service Use:
Offshore structures • Bridges • Marine platforms • Dynamic load structures
Key Characteristics:
Superior impact resistance at –20°C, suitable for harsh climate zones.
Size Range:
SHS 50×50 to 400×400 mm
RHS 60×40 to 500×300 mm
CHS 48.3 to 610 mm OD
Industry Sectors:
Offshore • Oil & Gas • Heavy engineering • Cold-region structures
EN 10219 Hollow Sections – Size & Weight Chart (Indicative)
| Type | Size | Thickness | Approx. Weight (kg/m) |
|---|---|---|---|
| SHS | 40×40 | 3.0 mm | 3.52 |
| SHS | 100×100 | 5.0 mm | 14.60 |
| SHS | 200×200 | 8.0 mm | 47.20 |
| RHS | 50×25 | 3.0 mm | 3.10 |
| RHS | 120×60 | 4.5 mm | 10.20 |
| RHS | 300×200 | 8.0 mm | 36.70 |
| CHS | 48.3 OD | 3.2 mm | 3.65 |
| CHS | 168.3 OD | 5.0 mm | 20.40 |
| CHS | 355.6 OD | 8.0 mm | 67.80 |
📥 Full EN 10219 weight chart available on request.
Indicative Price Range – EN 10219 Hollow Sections
| Grade | Type | Avg. Price (₹/kg) | Avg. Price ($/kg) | Typical Use |
|---|---|---|---|---|
| S235JRH | SHS/RHS/CHS | ₹70 – ₹82 | $0.90 – $1.05 | Light structures |
| S275JRH | SHS/RHS/CHS | ₹74 – ₹88 | $0.95 – $1.12 | PEB & fabrication |
| S355J0H | SHS/RHS/CHS | ₹78 – ₹95 | $1.05 – $1.25 | Heavy structural |
| S355J2H | SHS/RHS/CHS | ₹85 – ₹110 | $1.15 – $1.45 | Offshore & dynamic loads |
Prices vary by size, wall thickness, coating, and project destination.
HSN / HS Code
HSN 7306 — Welded structural hollow sections of non-alloy steel
Used globally for EN 10219 SHS/RHS/CHS.
EN 10219 ensures stringent quality checks, especially for impact-tested grades (J0H, J2H).
Testing Methods
Documentation Provided
Inox Steel India is a trusted manufacturer and exporter of EN 10219 cold-formed welded hollow sections, supplying structural steel solutions to engineering companies, EPC contractors, heavy fabrication units, modular building firms, and offshore industries. Our SHS, RHS, and CHS sections are manufactured with strict dimensional tolerances, certified mechanical properties, and documented impact strength for demanding structural conditions.
✔ Key Advantages of Choosing Our EN 10219 Hollow Sections
Our EN 10219 sections deliver consistent, reliable, and globally accepted structural performance.
Industries & Applications We Serve
| Industry | Applications | Preferred Grades |
|---|---|---|
| Structural Engineering | Columns, beams, frameworks, bracings | S275JRH / S355J0H |
| Heavy Fabrication | Equipment bases, machine frames | S355J2H |
| Offshore & Marine | Platforms, supports, access structures | S355J2H |
| Infrastructure | Bridges, towers, walkways | S355J0H / S355J2H |
| Construction & PEB | Sheds, trusses, mezzanine floors | S235JRH / S275JRH |
| Industrial Projects | Material handling structures, cranes | S355J0H / S355J2H |
EN 10219 hollow sections are engineered for projects requiring toughness, reliability, and structural integrity.
Export Readiness & Packaging
Inox Steel India exports EN 10219 hollow sections to 40+ countries, supplying certified material for large-scale construction, offshore engineering, and structural steel projects.
Standard Export Packaging
Major Export Markets
UAE • Saudi Arabia • Qatar • Oman • Kuwait • Bahrain
Germany • Italy • France • UK • Netherlands • Spain
South Africa • Kenya • Egypt • Nigeria
Malaysia • Singapore • Indonesia • Australia
We ensure smooth export documentation: MTC 3.1, impact reports, CE compliance (on request), and packing lists.
S355J0H or S355J2H due to higher yield strength and impact resistance. Yes, we supply bare, pickled, oiled, pre-galvanized, and hot-dip galvanized options. Yes, to Europe, Middle East, Africa, and Asia-Pacific regions. SHS up to 400×400 mm, RHS up to 500×300 mm, and CHS up to 610 mm OD. What is the difference between J0H and J2H?
Which grade is best for heavy structural applications?
Can EN 10219 sections be galvanized?
Do you export EN 10219 hollow sections?
What sizes are available under EN 10219?
