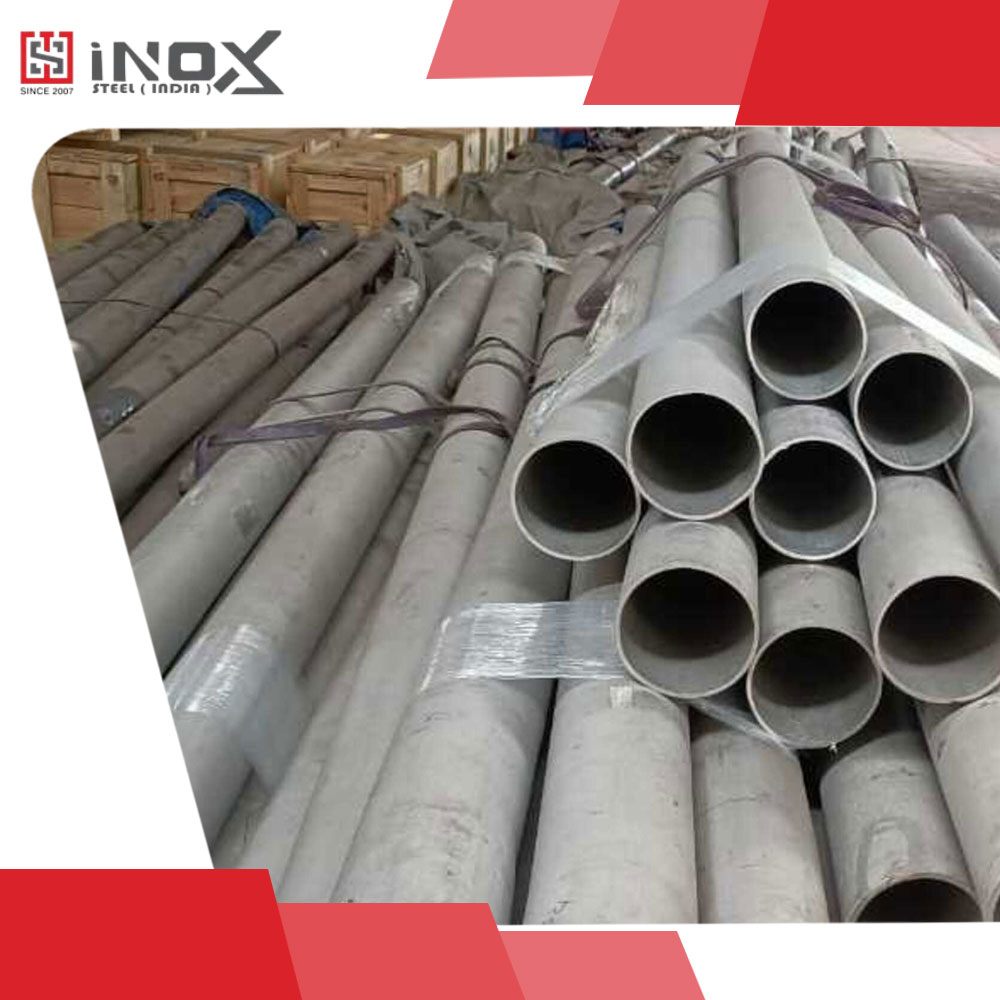

Inox Steel India is a leading manufacturer and exporter of Stainless Steel Welded Pipes in grades TP304, TP304L, TP316, and TP316L, produced strictly as per ASTM A312 / ASME SA312 specifications. These welded pipes are widely used in chemical processing, food & dairy, pharma, water treatment, oil & gas, heat exchangers, and structural applications.
SS 304/304L welded pipes offer excellent corrosion resistance for general and industrial service, while SS 316/316L welded pipes deliver enhanced resistance to chlorides, seawater, and harsh chemicals due to 2–3% molybdenum content.
We manufacture welded SS pipes using ERW, EFW, TIG welding, and Laser Welding, followed by solution annealing, pickling, polishing, and 100% hydro testing to ensure consistency, durability, and long service life.
Inox Steel India supplies stainless steel welded pipes to EPC contractors, OEM manufacturers, marine industries, chemical plants, water systems, and pharmaceutical equipment manufacturers across India, Middle East, Europe, USA, and Asia.
Stainless Steel Welded Pipes are produced by forming plates or coils into cylindrical shapes, welding them using ERW/EFW/TIG, and then solution annealing to restore corrosion resistance and stress-free structure.
Key Characteristics:
SS 304/304L is commonly used for general applications, while SS 316/316L is preferred for chloride-containing or corrosive environments.
Types of Stainless Steel Welded Pipes We Manufacture
✔ ERW (Electric Resistance Welded) SS Pipes
For low to medium pressure, water lines, structural use.
✔ EFW (Electric Fusion Welded) SS Pipes
Used in chemical, process piping & high-corrosion areas.
✔ TIG Welded SS Pipes
High-quality welds for pharmaceutical and hygienic applications.
✔ Polished Stainless Steel Welded Pipes
Available in 180, 240, 320, 600 grit finishing.
✔ Large Diameter SS Welded Pipes
For structural, exhaust, and industrial utility applications.
1️⃣ Raw Material Inspection
Coils/plates undergo PMI testing and surface inspection.
2️⃣ Forming
Rolling/forming into pipe shape with controlled roundness.
3️⃣ Welding Process
Depending on the application:
4️⃣ Weld Bead Removal
Internal/external bead removal for hygienic flow (pharma grade).
5️⃣ Solution Annealing
Heat-treated to restore corrosion resistance and internal structure.
6️⃣ Pickling & Passivation
Removes scale & restores passive chromium oxide layer.
7️⃣ Testing
Hydro testing, eddy-current testing, visual inspection, dimensional check.
8️⃣ Polishing (If Required)
Mirror / matt finish for food-grade or architectural use.
9️⃣ Final Inspection & Marking
Grade, heat no., OD, WT, ASTM A312 marking.
Food & Dairy Industry
Hygienic flow for milk, beverages, CIP systems & processing units.
Pharmaceutical Manufacturing
SS 316L preferred for ultra-hygienic, corrosion-free pipework.
Chemical & Petrochemical Industry
Resists chemical attack, chlorides & moderate-temperature service.
Water Treatment & Desalination
Corrosion-resistant piping for RO plants & potable water lines.
Oil & Gas (Low/Medium Pressure)
Utility and process piping.
Structural & Architectural
Handrails, frames, columns & fabrication applications.
Heat Exchangers & Utility Lines
Good heat transfer performance and corrosion resistance.
Stainless Steel Welded Pipes manufactured under ASTM A312 / ASME SA312 are widely used in chemical, pharmaceutical, water treatment, food processing, marine and utility piping systems, offering excellent corrosion resistance, durability, and weldability.
The addition of molybdenum (Mo) in SS 316/316L significantly enhances resistance to chloride attack, pitting, and crevice corrosion, making these grades suitable for seawater and harsh chemical applications.
At Inox Steel India, our SS welded pipes are produced using ERW, EFW, TIG and Plasma Welding, followed by solution annealing, pickling, passivation, and mandatory hydro and NDT testing to meet ASTM A312 standards.
| Parameter / Property | SS 304 / 304L (UNS S30400 / S30403) | SS 316 / 316L (UNS S31600 / S31603) | Standard Requirements – ASTM A312 / ASME SA312 |
|---|---|---|---|
| Material Type | Austenitic Stainless Steel | Austenitic Stainless Steel (Mo-added) | Welded / Seamless Stainless Steel Pipes |
| Grades Covered | TP304, TP304L | TP316, TP316L | As per spec |
| Manufacturing Standard | ASTM A312 / ASME SA312 | ASTM A312 / ASME SA312 | Mandatory chemical & mechanical compliance |
| Corrosion Resistance | Good | Excellent (due to 2–3% Mo) | As per ASTM |
| Key Composition | 18% Cr, 8% Ni | 16–18% Cr, 10–14% Ni, 2–3% Mo | Defined in ASTM tables |
| Low Carbon Grade | 304L (for welding) | 316L (for welding) | Mandatory L-grade chemistry |
| Temperature Resistance | Up to ~870°C | Up to ~870°C | As per design |
| Weldability | Excellent | Excellent | Weld seam requirements defined |
| Mechanical Strength (TS) | 515–690 MPa | 515–690 MPa | As per grade |
| Yield Strength (YS) | 205 MPa | 205 MPa | Per ASTM |
| Density | 8.0 g/cm³ | 8.0 g/cm³ | — |
| Weld Type | ERW / EFW / TIG welded | ERW / EFW / TIG welded | Weld seam solution annealed |
| Heat Treatment | Solution Annealed | Solution Annealed | Required after welding (unless exempted) |
| NDT Requirements | Eddy Current / Hydro Test | Eddy Current / Hydro Test | Mandatory per ASTM |
| Hydrostatic Test | Required | Required | Mandatory |
| OD Range | ½” – 24” | ½” – 24” | Per ASTM |
| Wall Thickness | SCH 10 – SCH 80 / XXS | SCH 10 – SCH 80 / XXS | As specified |
| Typical Applications | Food, Pharma, Water, Chemical | Oil & Gas, Marine, Chemical | General + pressure service |
| Surface Finish | Pickled, Annealed, Polished | Pickled, Annealed, Polished | ASTM-compliant |
| Testing Documents | MTC 3.1, PMI, EC test | MTC 3.1, PMI, EC test | Required |
| HSN Code | 7306.40 | 7306.40 | SS welded pipes |
✔ TP304 / TP304L (UNS S30400 / S30403)
✔ TP316 / TP316L (UNS S31600 / S31603)
✔ For food, dairy, pharmaceutical, water supply
→ Use SS 304/304L
Affordable, hygienic, easy to clean.
✔ For chlorides, seawater, or chemicals
→ Use SS 316/316L
Resists pitting, scaling & chemical attack.
✔ For welded fabrication
→ Use L-grades (304L / 316L)
Low carbon → prevents carbide precipitation & cracking.
✔ For high-temperature utility service
→ All grades suitable up to 870°C (intermittent).
| Application Sector | Recommended Grade | Reason |
|---|---|---|
| Food & Pharmaceutical | 304 / 316L | Hygienic, corrosion-free, smooth internal finish |
| Chemical Processing | 316 / 316L | Mo improves chemical resistance |
| Water Lines (RO / Potable) | 304 / 304L | Cost-effective & durable |
| Marine Systems | 316L | High chloride resistance |
| Utility Lines & Heat Exchangers | 304 / 316 | High temperature + corrosion resistance |
| Structural / Architectural | 304 | Aesthetic finish, strong & weldable |
| Parameter | Capability |
|---|---|
| Outside Diameter (OD) | ½” – 24” |
| Wall Thickness | SCH 5S – SCH 80S / XXS |
| Length | 6 m / 12 m |
| Weld Types | ERW / EFW / TIG / Plasma Welded |
| Form | Round, Square & Rectangular |
| Finishes | Annealed, Pickled, Polished (180/240/320/600 Grit) |
| Ends | Plain / Bevelled |
| Grade | Price (INR/kg) | Price (USD/kg) |
|---|---|---|
| SS 304 / 304L Welded Pipes | ₹ 260 – ₹ 350 | $ 3.2 – $ 4.5 |
| SS 316 / 316L Welded Pipes | ₹ 350 – ₹ 480 | $ 4.5 – $ 6.0 |
| Polished Pipes | +₹ 20 – ₹ 60 | +$ 0.3 – $ 0.7 |
| EFW / Large Diameter | Custom | Custom |
Pricing varies based on OD, thickness, finish, testing level & documentation.
7306.40 — Stainless Steel Welded Pipes
✔ Mandatory Tests (As per ASTM A312)
✔ Optional Tests (on request)
✔ Mechanical Tests
✔ Documentation Provided
✔ Third-Party Inspection
SGS • BV • Lloyd’s • TÜV • DNV
Inox Steel India exports SS Welded Pipes to:
Middle East:
Africa:
Europe:
Americas:
Asia Pacific:
Industries served include food processing, pharma, marine utilities, water systems, petrochemicals & fabrication.
Stainless Steel Welded Pipes manufactured by Inox Steel India are preferred by EPC contractors, OEM manufacturers, and global industries due to our precision welding, strict ASTM compliance, surface finishing capability, and 100% testing assurance.
Here’s why customers choose our ASTM A312 SS Welded Pipes:
Inox Steel India delivers consistent quality, stable supply, and competitive pricing — making us a leading supplier in stainless steel welded pipes.
Food & Beverage / Dairy
SS 304/304L polished pipes ensure hygienic flow and excellent cleanability.
Pharmaceuticals & Biotech
SS 316L welded pipes are preferred for purity, corrosion resistance & clean-room compatibility.
Chemical & Petrochemical Plants
SS 316/316L withstand chlorides, solvents, and medium-aggressive chemicals.
Water Treatment & Desalination
Used in RO plants, DM water lines, potable water systems & utility pipelines.
Oil & Gas Industries
Used in low-pressure utility piping, skids, structural pipework & general process lines.
Fabrication & Construction
Handrails, supports, frames, and architectural elements use SS welded pipes extensively.
Heat Exchangers & Utility Lines
High thermal resistance makes SS ideal for moderate–high temperature service.
To ensure safe delivery and prevent contamination, all stainless steel welded pipes are packed using:
✔ Standard Packing
✔ Premium Packing (Food & Pharma)
✔ Export Packing
✔ Ports of Dispatch
Looking for Stainless Steel Welded Pipes in TP304, TP304L, TP316, TP316L?
52-A, Mulji Thackersi Bldg, Islampura Street, Shop No. 10, Near Alankar Cinema, Mumbai – 400 004
steel@inoxsteelindia.in
+91 9930796690
Inox Steel India
Email
Phone
SS 316L is preferred.
Yes — TIG welded & polished pipes are suitable for hygienic applications.
Yes — hydro testing is mandatory as per ASTM A312.
Yes — bead-rolled or bead-removed pipes available for special applications.
Yes — EFW & large diameter welded pipes up to 24″ OD.
We offer quick delivery, competitive pricing, technical support & global exports.
