Home > Seamless Tube > ASTM B163 / B167 / B444

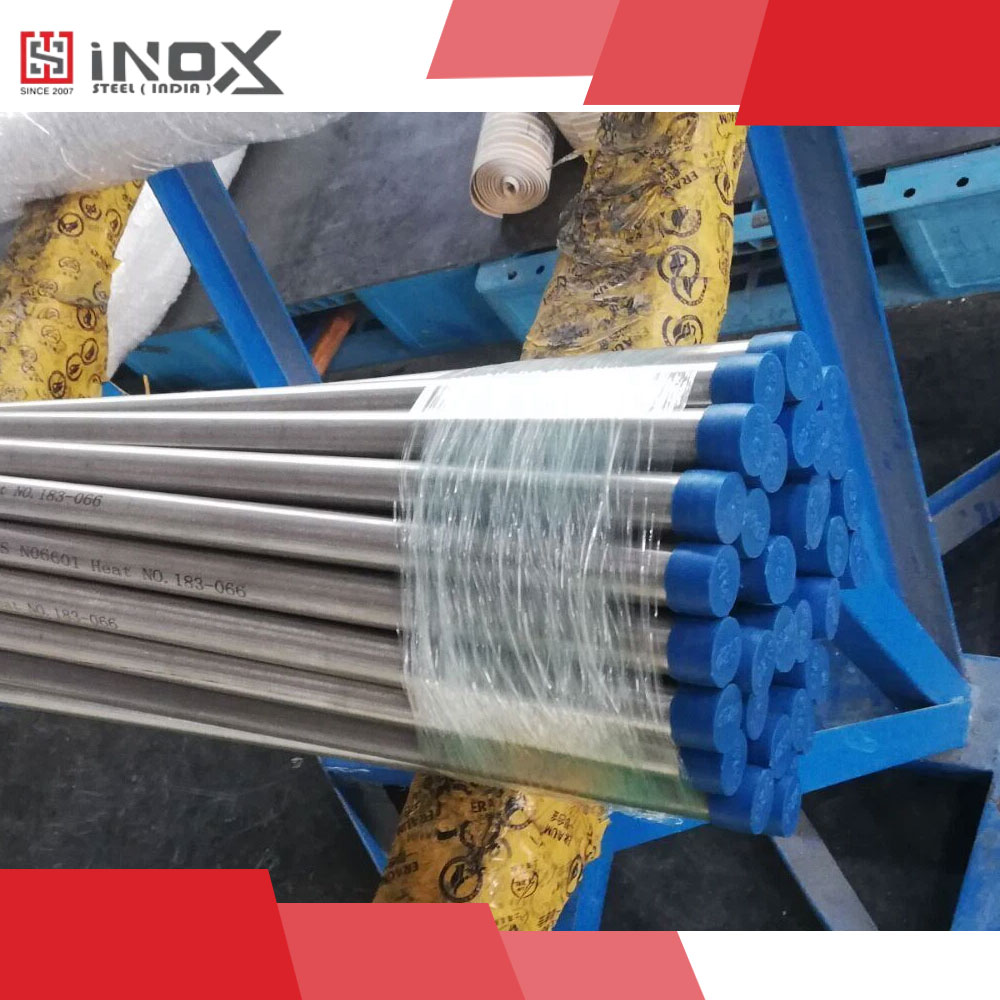

Inox Steel India is a leading manufacturer, stockist, and global exporter of Nickel Alloy Tubes conforming to ASTM B163, ASTM B167, and ASTM B444, covering high-performance alloys such as Inconel (625, 600, 601, 825), Monel (400, K500), and Hastelloy (C22, C276, B3). With a strong supply footprint across GCC, Middle East, Africa, Europe, North America, and South America, we produce heat-resistant, corrosion-resistant nickel tubes engineered for the most demanding industrial environments.
Our manufacturing facility follows stringent metallurgical controls, ensuring every tube meets high pressure, high temperature, and highly corrosive service conditions required in chemical, petrochemical, power, oil & gas, marine, and pollution-control systems. Backed by ISO 9001, PED, IBR & EN 10204 3.1/3.2 certifications, Inox Steel India remains a trusted name for critical-application nickel tubes worldwide.
Nickel alloy tubes are precision-engineered tubular products manufactured from special high-nickel alloys designed to withstand extreme temperatures, corrosive chemicals, seawater, high pressure, oxidation, carburization, and pitting far beyond the capabilities of stainless steels.
Unlike conventional steel, nickel alloys maintain tensile strength, metallurgical stability, and surface integrity at elevated temperatures up to 1100 °C, making them essential for heat-intensive and chemically aggressive processes.
Nickel alloy tubes are selected for:
These tubes are engineered for longevity in conditions where stainless steel, duplex steel, or carbon steel tubes cannot survive.
Inox Steel India manufactures Nickel Alloy Tubes using five controlled production routes depending on grade, application, and client requirement:
This ensures every tube leaving the plant performs flawlessly under extreme working conditions.
🔹 Inconel Alloys (625, 600, 601, 825)
🔹 Monel Alloys (400, K500)
🔹 Hastelloy Alloys (C22, C276, B3)
Your table has already captured all chemical, mechanical, and dimensional ranges — this section gives buyers a clear understanding of the suitability of each alloy family.
| Parameter / Property | Inconel (625 / 600 / 601 / 825) | Monel (400 / K500) | Hastelloy (C22 / C276 / B3) |
| Material Type | Nickel-Chromium Alloy | Nickel-Copper Alloy | Nickel-Molybdenum-Chromium Alloy |
| Applicable Standards | ASTM B163 / B167 / B444 | ASTM B163 / B165 | ASTM B622 / B619 / B626 |
| UNS Number | N06625, N06600, N06601, N08825 | N04400, N05500 | N06022, N10276, N10675 |
| Corrosion Resistance | Excellent (oxidation + chloride) | Excellent (seawater) | Exceptional (acids, pitting, crevice) |
| Temperature Range | −196 °C to 1100 °C | −196 °C to 480 °C | −196 °C to 1040 °C |
| Key Characteristics | High-temp strength, oxidation resistance | Seawater & alkaline resistance | Extreme chemical & acid resistance |
| Ni (%) | 58–72% | 63% min | Balance |
| Cr (%) | 14–25% | — | 1–22.5% |
| Mo (%) | 8–10% (625) / 2.5–3.5% (825) | — | 12–32% |
| Fe (%) | 5–22% | ≤ 2.5% | ≤ 7% |
| Cu (%) | — | 27–34% | — |
| Al / Ti (%) | 0–1.7% | 0.35–3.2% | ≤ 1% |
| Tensile Strength (MPa) | 620–830 | 550 | 790 |
| Yield Strength (MPa) | 240–415 | 240 | 355 |
| Elongation (%) | 30% | 40% | 40% |
| Hardness | 80–95 HRB | 65 HRB max | 95 HRB max |
| Manufacturing Method | Seamless, Welded, Cold-Drawn, EFW | Seamless | Seamless, Welded, EFW |
| Outside Diameter (OD) | 6 mm – 219 mm | 6 mm – 219 mm | 6 mm – 219 mm |
| Wall Thickness | 0.5 mm – 12 mm | 0.5 mm – 12 mm | 0.5 mm – 12 mm |
| Schedules Available | SCH 5S – SCH 160 | SCH 5S – SCH 160 | SCH 5S – SCH 160 |
| Length | 3M / 6M / 12M | 3M / 6M / 12M | 3M / 6M / 12M |
| End Finish | Plain / Bevelled | Plain / Bevelled | Plain / Bevelled |
| Surface Finish | Annealed, Pickled, Bright | Annealed, Pickled | Annealed, Pickled, Bright |
| Hydrostatic Test | ✓ | ✓ | ✓ |
| Eddy Current Test | ✓ | ✓ | ✓ |
| Ultrasonic Test | ✓ | ✓ | ✓ |
| PMI Test | ✓ | ✓ | ✓ |
| Intergranular Corrosion Test | ✓ | ✓ | ✓ |
| Mechanical Tests | ✓ | ✓ | ✓ |
| Microstructure & Grain Flow Test | ✓ | ✓ | ✓ |
| Third-Party Inspection (SGS/BV/TUV/DNV) | Available | Available | Available |
| Typical Applications | Heat exchangers · Furnaces · Gas turbines · Chemical plants · Nuclear | Marine · Offshore · Desalination · Pump shafts | Chemical reactors · Acid plants · Scrubbers · High-pitting environments |
| Industry Use | Oil & Gas · Petrochemicals · Aerospace · Power | Marine · Offshore · Shipbuilding | Chemical · Fertilizer · Pharmaceutical |
| Certifications | EN 10204 3.1 / 3.2 · ISO 9001 | 3.1 / 3.2 | 3.1 / 3.2 · PED 2014/68/EU |
| HSN Code | 7507.12 / 7507.20 | 7505.12 | 7506.20 |
Procurement engineers evaluate the following parameters:
Schedules: SCH 5S to SCH 160 based on pressure requirements.
PED, EN 10204 3.1 / 3.2, NACE MR0175/MR0103 (for oil & gas sour service)
Nickel alloys require specific heat treatment cycles to avoid:
Major consumption in:
High usage in:
Demand for:
Strict PED & NACE compliance → high demand for Inconel & Hastelloy in:
Nickel Alloy Tubes manufactured by Inox Steel India are engineered for high-pressure, high-temperature, and severely corrosive environments found in refineries, chemical reactors, offshore platforms, desalination plants, and high-purity processing lines. Each grade—Inconel, Monel, and Hastelloy—delivers selective performance based on chlorine concentration, acid presence, thermal cycling, and pressure profiles.
Below is a complete, organized mapping of applications by grade, type, size, and temperature, following your standard format.
Inconel Tubes (ASTM B163 / B167 / B444)
Grades: 600, 601, 625, 825
Service Use: Extreme high-temperature & corrosive service
| Application | Temperature Range | Service Media | Industries |
|---|---|---|---|
| Reformers & crackers | Up to 1100 °C | Hot gases, hydrocarbons | Petrochemical, Refining |
| Heat exchangers | −196 °C to 1000 °C | Chlorides, seawater, acids | Chemical, Marine, Power |
| Furnace components | Up to 1100 °C | Hot oxidation | Metallurgy, Furnaces |
| Waste incinerators | >1000 °C | Nitrogen oxides, sulphur gas | Pollution Control |
Monel Tubes (ASTM B163 / B165)
Grades: 400, K500
Service Use: Chloride-rich, seawater and alkaline environments
| Application | Purpose | Industries |
|---|---|---|
| Marine pumps & shafts | Corrosion-free seawater handling | Marine, Offshore |
| Desalination plant piping | Brine-resistant tubing | Water Treatment |
| Heat exchangers | Anti-fouling & alkaline resistance | Power, Chemical |
| Offshore risers | Erosion + seawater attack resistant | Oil & Gas |
Hastelloy Tubes (ASTM B622 / B619 / B626)
Grades: C22, C276, B3
Service Use: Strong acidic environments
| Application | Acid Exposure | Industries |
|---|---|---|
| Chemical reactors | HCl, HF, HNO₃, H₂SO₄ | Chemical Plants |
| Pollution control systems | SO₂, NOx gases | Environmental |
| Heat exchangers | High chloride + acidic brine | Power, Chemical |
| Pharmaceutical tubing | Ultra-high purity | Pharma, Biofuel |
| NPS (Inch) | OD (mm) | Wall Thickness (SCH 40) | Approx. Weight (kg/m) |
| ½″ | 21.3 | 2.77 | 1.25 |
| 1″ | 33.4 | 3.38 | 2.48 |
| 2″ | 60.3 | 3.91 | 5.52 |
| 3″ | 88.9 | 5.49 | 10.90 |
| 4″ | 114.3 | 6.02 | 15.20 |
| 6″ | 168.3 | 7.11 | 29.75 |
| 8″ | 219.1 | 8.18 | 45.80 |
| 10″ | 273.1 | 9.27 | 66.25 |
Full schedule chart (SCH 5S to XXS) available on request.
| Grade | OD Range | Avg. Price INR/kg (F.O.B Mumbai) | USD/kg (F.O.B India) | Typical Application |
| Inconel 600 / 625 | 6–219 mm | ₹ 2,850 – 3,800 | $35 – $46 | High-temp + oxidation |
| Incoloy 825 | 6–219 mm | ₹ 1,950 – 2,600 | $24 – $31 | Heat exchangers |
| Monel 400 | 6–168 mm | ₹ 1,250 – 1,800 | $15 – $22 | Marine & seawater |
| Monel K500 | 6–168 mm | ₹ 1,800 – 2,450 | $22 – $30 | Offshore shafts |
| Hastelloy C22 / C276 | 6–159 mm | ₹ 3,200 – 4,500 | $38 – $55 | Strong acids |
| Hastelloy B3 | 6–159 mm | ₹ 3,600 – 5,200 | $43 – $64 | Reducing acids |
Prices depend on wall thickness, finish, origin, and TPI requirements.
| Product Category | HSN Code |
|---|---|
| Nickel Alloy Tubes (Inconel/Monel/Hastelloy) | 7507.12 / 7507.20 |
| Nickel Alloy Pipes (Welded) | 7508.20 |
Every nickel alloy tube undergoes rigorous metallurgical, mechanical, and non-destructive test procedures:
Mechanical Tests
Non-Destructive Tests (NDT)
Metallurgical Tests
Regulatory Compliance
Third-Party Inspection Options
Heat Treatment
All tubes are supplied in solution annealed condition ensuring:
Dimensional Tolerance
In accordance with:
End Finishing
Inox Steel India is widely searched as a “Nickel Alloy Tube Supplier near Alankar Cinema, Mumbai” because of our strong manufacturing capability, large ready stock, and rapid export dispatches. With trained metallurgical experts, PED-certified processes, and global logistics via JNPT, Mundra, and Hazira, we cater to industries across India, Middle East, Africa, Europe, and the Americas.
Whether you require Inconel 625 heat exchanger tubes, Monel 400 seawater-resistant tubes, or Hastelloy C276 acid service tubes, we ensure consistent quality, batch traceability, and technical support from inquiry to delivery.
| Industry | Applications | Preferred Alloy Grades |
| Oil & Gas Refineries | Heater tubes, furnace tubes, reformers, condensers | Inconel 600 / 625 / Hastelloy C276 |
| Chemical Processing | Acid loops, reactors, storage lines | Hastelloy C22 / B3 |
| Marine & Offshore | Pump shafts, seawater pipelines, risers | Monel 400 / K500 |
| Pharmaceutical & Biotech | Ultra-pure media tubing | Hastelloy C22 / Inconel 625 |
| Power & Energy | Heat exchanger bundles, boiler tubes | Inconel 601 / 625 |
| Desalination Plants | Brine pipelines, evaporators | Monel 400 |
| Pollution Control Systems | SO₂ / NOx scrubber tubes | Hastelloy C276 |
| Aerospace & Defense | High temperature tubing | Inconel 625 / 718 (on request) |
To ensure safe transportation, every shipment follows international export procedures.
Packaging Includes
Export Routes
We regularly export to: UAE · Qatar · Oman · Saudi Arabia · Kuwait · Nigeria · South Africa · Germany · UK · USA · Brazil · Mexico.
Our engineers respond within 24 hours with:
52-A, Mulji Thackersi Bldg, Islampura Street, Shop No. 10, Near Alankar Cinema, Mumbai – 400 004
steel@inoxsteelindia.in
+91 9930796690
Monel 400 and Monel K500 offer the best resistance against seawater, brine, and alkaline media. Inconel (especially 625, 600, 601) can withstand up to 1100 °C, making them ideal for furnace and petrochemical processing. Yes — Hastelloy C22 and C276 are among the world’s most corrosion-resistant alloys, especially in acidic and chloride-rich environments. Yes, we provide cut-to-length, U-bent tubes, tube bundles, and custom machining on request. The HSN Code is 7507.12 / 7507.20 for tubes and 7508.20 for welded pipes. Yes, we supply regularly to Dubai, Oman, Saudi Arabia, Germany, UK, USA, and Brazil. Which nickel alloy is best for seawater applications?
What is the temperature limit of Inconel tubes?
Are Hastelloy tubes corrosion resistant?
Do you supply nickel alloy tubes in custom lengths?
What is the HSN Code for nickel alloy tubes?
Do you export nickel alloy tubes to UAE, USA, and Europe?
Designed for critical pressure, extreme temperature, and high corrosion environments, our ASTM B163 / B167 / B444 nickel alloy tubes deliver unmatched reliability and global compliance.
