Engineered for extreme corrosion, extreme temperature, and zero-failure environmentsWhen stainless steels and even duplex alloys reach their performance limits, nickel-based alloys take over. ASTM B515 / B516 / B626 welded tubes are specified for applications where materials must withstand:
INOX STEEL INDIA supplies project-grade nickel alloy welded tubes manufactured with strict metallurgical control, weld integrity, and documentation compliance.
These are welded tubes manufactured from nickel-based or nickel–iron–chromium alloys, designed for environments that are too aggressive for carbon steel, stainless steel, or even duplex alloys. They are covered under:
Typical Grades: 600, 625, 601, 718
Best known for:
Common Uses:
Heat exchangers • superheaters • offshore piping • exhaust systems • aerospace components
Typical Grades: 400, K500
Best known for:
Common Uses:
Marine piping • seawater systems • chemical transfer lines • oil & gas components
Typical Grades: C22, C276
Best known for:
Common Uses:
Chemical reactors • acid plants • scrubbers • pollution control systems
Typical Grades: 800, 800H, 800HT, 825
Best known for:
Common Uses:
Furnaces • petrochemical heaters • power plants • heat treatment equipment
| Standard | Covers | Typical Use |
|---|---|---|
| ASTM B515 | General nickel alloy welded tubes & pipes | Chemical, marine, power |
| ASTM B516 | Welded pipe for high-temp & pressure | Boilers, heaters, furnaces |
| ASTM B626 | Welded tubes for Ni–Cr–Mo / Ni–Fe–Cr alloys | Acid plants, offshore, reactors |
Oil & Gas
Chemical & Petrochemical
Power & Aerospace
Marine & Offshore
Aerospace & High-Tech

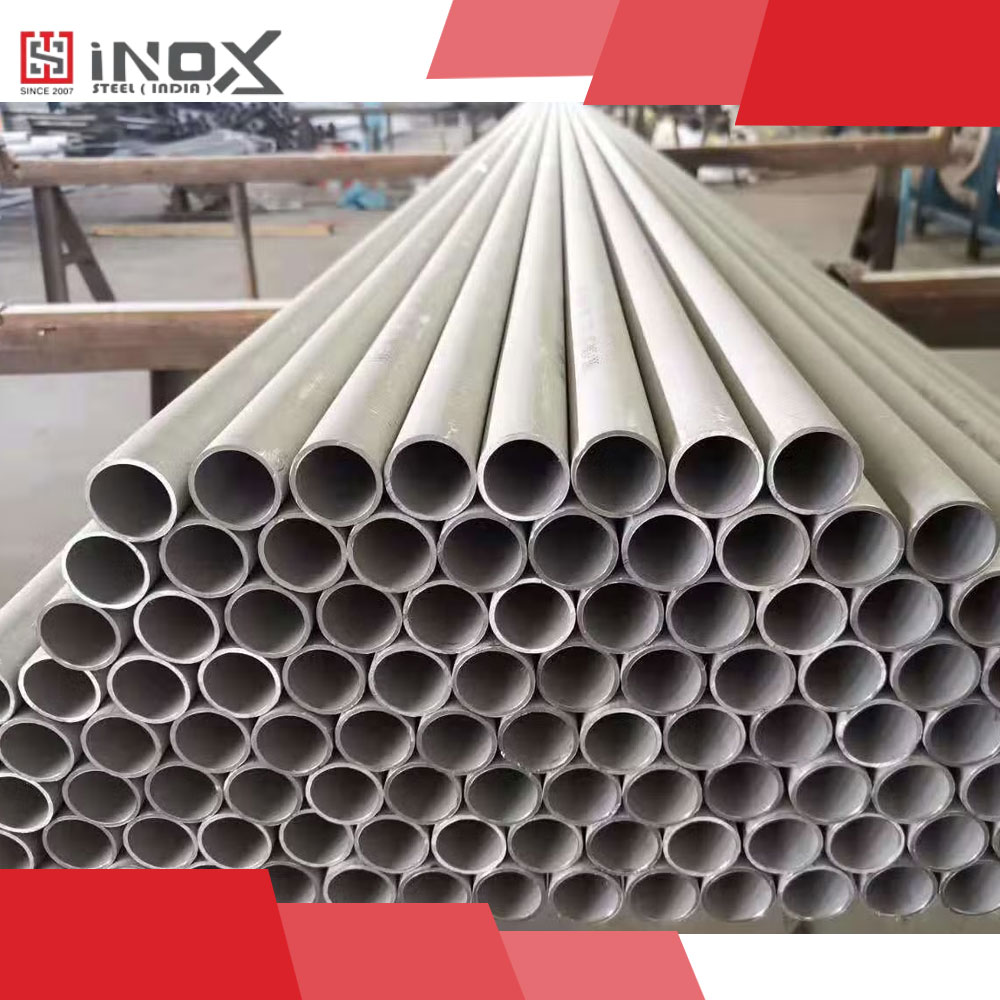

Nickel Alloy & Incoloy Welded Tubes
Brand: INOX STEEL INDIA
| Section | Parameter | Technical Specification — Nickel Alloy & Incoloy Welded Tubes |
|---|---|---|
| Standards Covered | ASTM B515 | Nickel Alloy & Nickel-Iron-Chromium welded pipes & tubes |
| ASTM B516 | Nickel Alloy welded pipe for high-temperature & pressure service | |
| ASTM B626 | Welded tubes for nickel-chromium-molybdenum & nickel-iron-chromium alloys | |
| Material Families | Nickel Alloys | Inconel®, Monel®, Hastelloy® |
| Incoloy Alloys | Nickel-Iron-Chromium alloys | |
| Common Grades | Inconel | 600, 625, 601, 718 |
| Monel | 400, K500 | |
| Hastelloy | C22, C276 | |
| Incoloy | 800, 800H, 800HT, 825 | |
| Manufacturing Process | Welding | TIG / Plasma / SAW welded |
| Weld Bead | Bead removed / bead rolled | |
| Heat Treatment | Solution annealed / stress relieved | |
| Dimensional Range | Outside Diameter | 6 mm – 610 mm |
| Wall Thickness | 0.8 mm – 12 mm | |
| Length | 6 m / 12 m / cut-to-length | |
| Mechanical Properties (Typical) | Tensile Strength | 550 – 900 MPa (grade dependent) |
| Yield Strength | 240 – 550 MPa | |
| Elongation | ≥ 30% | |
| Corrosion Resistance | Oxidation | Excellent (high-temp service) |
| Chlorides | Excellent (C-series best) | |
| Acids | Outstanding (Hastelloy C-series) | |
| Seawater | Very high (Monel, Inconel 625) | |
| Temperature Capability | Continuous Service | Up to 1000°C (grade dependent) |
| Testing Requirements | Mandatory | Hydro, Eddy Current, Flattening, Flaring |
| Advanced | PMI, UT, RT, IGC, corrosion tests | |
| End Finish | Tube Ends | Plain / Beveled |
| Surface | Pickled, passivated, polished (if required) | |
| Key Advantages | Performance | Extreme corrosion + high-temperature strength |
| Lifecycle | Very long service life in aggressive media | |
| Typical Applications | Oil & Gas | Heat exchangers, sour service |
| Chemical | Acid plants, reactors | |
| Power | Boilers, superheaters | |
| Marine | Seawater systems | |
| Aerospace | High-temp fluid systems | |
| HSN Code | Nickel Alloy Tubes | 75071200 / 75072000 (as applicable) |
| Outside Diameter (OD) | Wall Thickness (WT) | Typical Applications |
|---|---|---|
| 6 – 19.05 mm | 0.8 – 2.0 mm | Instrumentation, chemical dosing, sampling lines |
| 19.05 – 38.1 mm | 1.0 – 3.0 mm | Heat exchanger / condenser tubes |
| 38.1 – 60.3 mm | 1.5 – 5.0 mm | Process piping, high-temp lines |
| 60.3 – 114.3 mm | 2.0 – 8.0 mm | Refinery lines, offshore skids |
| 114.3 – 610 mm | 3.0 – 12.0 mm | Headers, large-dia fabrication, critical pipelines |
Lengths: 6m / 12m / Cut-to-length as per project isometrics
End Finish: Plain • Beveled • Deburred • Cleaned
| Alloy Family | Typical High-Temp Strength | Best For |
|---|---|---|
| Inconel 600/601 | Very high | Oxidation resistance, furnace service |
| Inconel 625 | High | High temp + severe corrosion |
| Incoloy 800/800H/800HT | High | Heat treatment, petrochemical heaters |
| Hastelloy C22/C276 | Medium–High | Chemical process + acids |
| Monel 400/K500 | Medium | Marine + brine (not highest temp) |
Engineering Note: Nickel alloys are chosen because they retain mechanical stability where SS/duplex softens or corrodes aggressively.
| Service Environment | Best Alloy Choice | Why |
|---|---|---|
| Seawater / brine | Monel 400 / Inconel 625 | Excellent seawater corrosion resistance |
| Chlorides + high temp | Inconel 625 | Pitting/crevice resistance + high-temp strength |
| Mixed acids / oxidizing + reducing | Hastelloy C22 | One of the most versatile acid-resistant alloys |
| Reducing acids (HCl / sulfuric areas) | Hastelloy C276 | Excellent resistance in reducing media |
| Carburizing / sulfidation atmospheres | Incoloy 800HT | Strong high-temp oxidation/carburization resistance |
| Hydrofluoric acid | Monel 400 | Highly resistant vs SS |
Welding Processes Supported:
Weld Quality Requirements (Critical for B515/B516/B626)
Typical filler references (industry practice):
Heat Treatment (when required)
INOX supplies as per project WPS/PQR requirements.
Mandatory Tests
Advanced / Project Tests
Certificates: EN 10204 3.1 / 3.2 + third-party inspection if required.
| Requirement | Recommended Alloy | Reason |
|---|---|---|
| Marine / seawater lines | Monel 400 | Seawater and brine performance |
| High corrosion + high temp | Inconel 625 | Strong + corrosion resistant |
| Mixed acids (oxidizing + reducing) | Hastelloy C22 | Broadest acid resistance |
| Reducing acids / harsh chemicals | Hastelloy C276 | Excellent reducing environment resistance |
| Furnace / petrochemical heaters | Incoloy 800HT | High-temp oxidation & carburization resistance |
| Alloy Family | Indicative Price (INR/Kg) | Indicative Price (USD/Kg) |
|---|---|---|
| Monel 400 | ₹ 1,200 – ₹ 2,100 | $15 – $26 |
| Inconel 625 | ₹ 2,200 – ₹ 3,800 | $27 – $46 |
| Hastelloy C276 / C22 | ₹ 2,800 – ₹ 4,500 | $34 – $55 |
| Incoloy 825 / 800HT | ₹ 1,600 – ₹ 2,800 | $20 – $34 |
(Indicative only; inquiry-based for accuracy.)
| Condition | Recommended Use |
|---|---|
| Pickled & Passivated | Chemical & offshore corrosion service |
| Bright Annealed / Cleaned | High purity lines (if required) |
| Polished OD | Skids / visible piping |
| Bead-Rolled ID | Better flow, reduced corrosion initiation points |
1. Alloy-Specific Process Control
2. Weld Integrity for Critical Service
3. EPC & Project-Ready Supply
4. Lifecycle Cost Advantage
Higher upfront alloy cost is offset by longer service life, reduced downtime, and lower maintenance—especially in acid plants, offshore systems, and high-temperature units.
Oil & Gas (Onshore / Offshore)
Chemical & Petrochemical
Power & Process Heating
Marine & Offshore
Aerospace & High-Tech
Standard / Project Packaging
Export / Critical Alloy Packaging
Documentation
52-A, Mulji Thackersi Bldg, Islampura Street, Shop No. 10, Near Alankar Cinema, Mumbai – 400 004
steel@inoxsteelindia.in
+91 9930796690
Monel 400 or Inconel 625. Hastelloy C22 (or C276 for reducing environments). Yes—when manufactured with controlled heat input and NDT. INOX supplies project-approved welded tubes. Yes—BV, DNV, LR, TUV on request. Which alloy is best for seawater?
