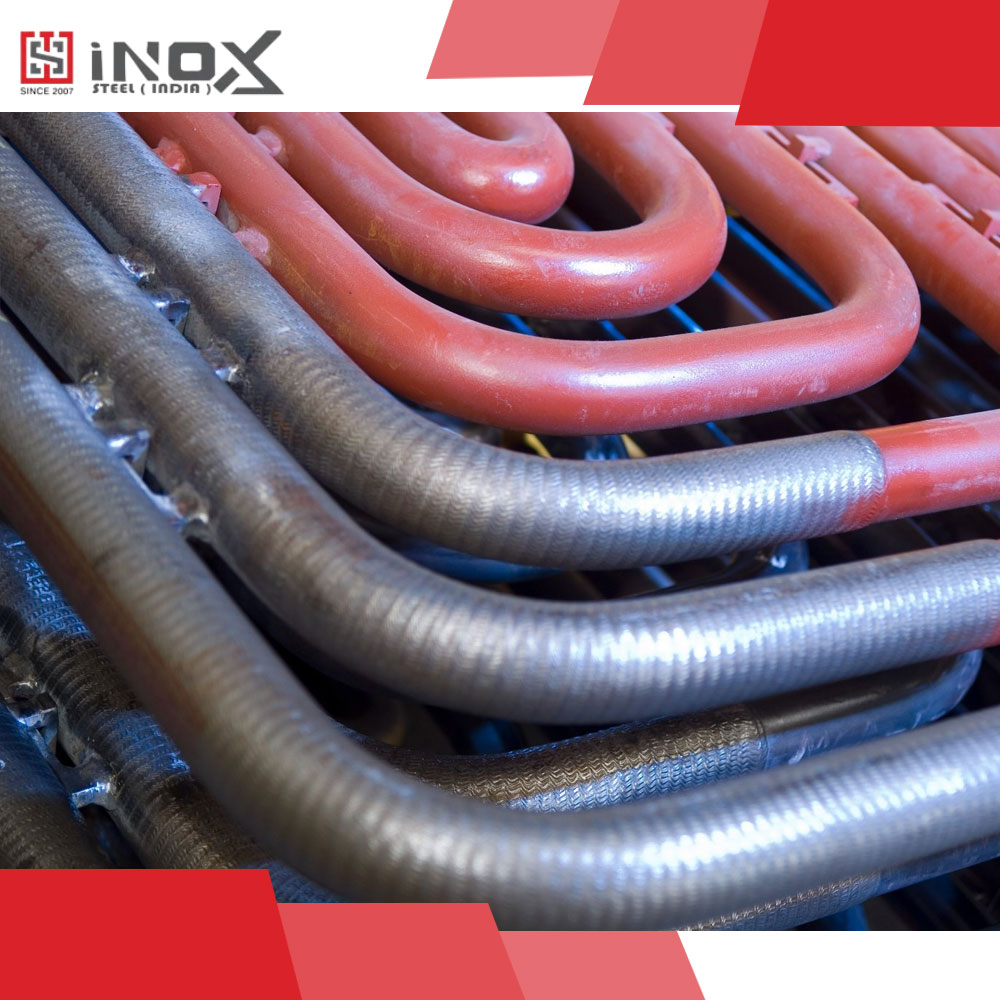

Boiler Tubes – ASTM A210 / A213 / DIN 17175 Manufacturer in India

High-Temperature · High-Pressure · Seamless Boiler & Superheater Tubes Inox Steel India

Inox Steel India is a leading manufacturer, stockist, and global exporter of Seamless Boiler Tubes conforming to ASTM A210, ASTM A213, and DIN 17175 standards. These tubes are engineered for high-temperature and high-pressure service in boilers, superheaters, reheaters, economizers, heat exchangers, and thermal power generation units.

Our boiler tubes operate reliably under the harshest operating conditions involving:

  • Superheated steam (up to 650°C)
  • Pressure up to 200+ bar
  • Thermal shock & cyclic temperature variations
  • Oxidation, sulphur-bearing flue gases, and corrosive environments
  • High creep, stress rupture, and long service life expectations

With precision manufacturing, strict heat-treatment control, advanced NDT testing, and full certification, Inox Steel India supplies boiler tubes for power plants, refineries, petrochemical units, sugar factories, industrial boilers, HRSG units, and process heating systems across India, GCC, Africa, Europe, USA, South Asia, and South America.

Table of Contents

Understanding Boiler Tubes – Why These Standards Matter

Boiler tubes must withstand extreme mechanical and thermal conditions. The materials and standards ensure:

  • High Pressure Strength – The tubes sustain continuous steam pressure, resisting deformation and creep.
  • High Temperature Stability – Mechanical properties remain stable even at 450°C – 650°C.
  • Resistance to Oxidation & Flue Gases – DIN and ASTM alloys handle sulphur oxides, nitrogen oxides, and burnt fuel gases.
  • Dimensional Accuracy – Precise OD/WT ensures proper fitment in tube sheets and headers.
  • Reliability in Continuous Operation – Plants depend on zero failure; tube bursts or leakages cause massive downtime.

Because of these critical needs, industries rely only on globally proven standards like A210, A213 & DIN 17175.

Overview of Boiler Tube Standards

🔹 ASTM A210 – Medium Carbon Steel Boiler TubesUsed for:

  • Fire-tube boilers
  • Economizer tubes
  • Low-to-medium temperature heating systems

Key properties:

  • Good pressure resistance
  • Suitable for high wall thickness
  • Cost-effective for carbon steel boilers

🔹 ASTM A213 – Alloy & Stainless Steel Boiler TubesUsed for:

  • Superheaters
  • Reheaters
  • High-temperature steam lines
  • Chemical and petrochemical heat exchangers

Popular grades:

  • T11, T22 → Ferritic alloy steel (elevated temperature strength)
  • TP304, TP316, TP321 → Austenitic stainless steels

🔹 DIN 17175 – German Standard High-Temperature TubesGlobal favourite for power plant boilers.

Common grades:

  • St35.8 / St45.8 — Standard grade boiler tubes
  • 15Mo3 — Excellent resistance to sulphurous flue gases
  • 13CrMo4-5 / 10CrMo9-10 — High creep strength, ideal for superheaters

How High-Temperature Boiler Tubes Are Manufactured

Inox Steel India uses advanced facilities to produce boiler tubes capable of continuous high-pressure and high-temperature service.

Manufacturing Steps:

  1. Hot Piercing & Hollow Tube Formation: Billets are heated to ~1200°C and pierced to form seamless hollows.
  2. Cold Drawing / Hot Finishing: Depending on grade & requirement: Cold-drawn → tighter tolerances; Hot-finished → thicker walls, heavy-duty strength.
  3. Heat Treatment: Critical for boiler performance: Normalizing, Annealing, Quenching & tempering, Stress-relieving. Each heat treatment cycle is recorded and supplied in the MTC.
  4. Surface Finishing: Pickled, Black surface, Polished (SS grades).
  5. NDT Testing: Mandatory for boiler safety: Eddy current test, Ultrasonic test, Hydrostatic pressure test, Magnetic particle inspection.
  6. Final Processing: Bevelled ends, Deburring, Anti-corrosion oil coating.

Key Advantages of Boiler Tubes from Inox Steel India

  • High strength at elevated temperatures: Boiler tubes maintain structural integrity under continuous steam exposure.
  • Excellent pressure resistance: Engineered for uniform wall thickness & high mechanical strength.
  • Outstanding thermal fatigue performance: Crucial for systems with constant start-stop heat cycles.
  • Superior oxidation and corrosion resistance: Especially in alloy steel & DIN 17175 moly-chrome grades.
  • Long service life & reduced maintenance: Reduces plant downtime and operational cost.
  • International acceptance: Used in EPC projects, Power plant installations, Refinery boiler upgrades, and Overseas turnkey projects.

Applications & Technical Specifications of Boiler Tubes (A210 / A213 / DIN 17175)

Boiler tubes are at the heart of every steam-generation and heat-transfer system. They carry steam, hot water, or heat-transfer fluids under extreme pressure and temperature, making material selection and tube quality absolutely critical.

Applications by Standard / Grade / Service Condition

🔹 ASTM A210 (Carbon Steel Boiler Tubes)

  • Best for: Fire-tube boilers · Industrial heating · Economizers.
  • Application: Fire-Tube Boilers (Up to 400°C), Economizer Tubes (200–400°C), Low-to-Medium Temp Steam Lines, Heating Coils.
  • Industries: Textile · Pharma · Food · Sugar · HVAC.

🔹 ASTM A213 (Alloy Steel & Stainless Steel Boiler Tubes)

  • Best for: Superheaters · Reheaters · High-temperature boilers.
  • Grades: T11 / T22 (450–600°C), T5 / T9 / T91 (550–650°C), TP304 / TP316 (Up to 650°C), TP321 / TP347.
  • Applications: HRSG, Chemical steam heaters, Refinery heaters.

🔹 DIN 17175 (German Standard High-Temperature Tubes)

  • Best for: Coal-fired boilers · Biomass boilers · Refinery furnaces.
  • Grades: St35.8 / St45.8 (General), 15Mo3 (Sulphur resistance), 13CrMo4-5 (Creep strength), 10CrMo9-10.
  • Industries: Power Plants · Refinery · Boiler Bank.

Dimensional Range (General)

  • Outside Diameter (OD): 6 mm – 120 mm
  • Wall Thickness (WT): 2 mm – 25 mm
  • Length: 3M · 6M · 12M · Custom Cut
  • End Finish: Plain / Bevelled
  • Surface Finish: Black · Pickled · Polished (SS)

Price List (Indicative 2025 — INR + USD)

Standard Material Type Price (INR/kg) Price (USD/kg) Application
ASTM A210 Carbon Steel ₹ 95 – 150 $1.20 – $1.90 Fire-tube boilers
ASTM A213 (Alloy) T11 / T22 ₹ 165 – 280 $2.20 – $3.50 Superheaters
ASTM A213 (SS) TP304/316 ₹ 260 – 550 $3.20 – $6.80 Chemical heaters
DIN 17175 St35.8 / 15Mo3 / 13CrMo4-5 ₹ 120 – 350 $1.60 – $4.30 Power boilers

Prices vary depending on WT, OD, heat treatment, origin, and TPI requirements.

Testing & Quality Assurance

Mechanical Tests

  • Tensile strength
  • Yield strength
  • Hardness
  • Impact test (alloy grades)

Non-Destructive Tests

  • Hydrostatic pressure test
  • Ultrasonic inspection (UT)
  • Eddy current test (EC)
  • Magnetic particle test (MPI)

Metallurgical Tests

  • PMI testing
  • Grain size analysis
  • Creep & rupture test (on request)
  • Microstructure inspection

Dimensional & Certs

  • OD/Thickness tolerance
  • Straightness
  • EN 10204 3.1 / 3.2
  • IBR Certification

Third-Party Inspection Options: SGS, BV, TUV, DNV.

Engineering Notes (For Boiler & Furnace Designers)

  • A210 is suitable for low-to-medium temperature boilers.
  • A213 alloy grades (T11/T22) are perfect for high-temp superheaters.
  • DIN 17175 15Mo3/13CrMo4-5 are ideal for refinery heaters & power plants.
  • Allowable stress at temperature must comply with ASME Boiler & Pressure Vessel Code.
  • Wall thickness selection must be based on design pressure (PD) & allowable stress (S).

Boiler Tube Supplier Near Alankar Cinema, Mumbai — Inox Steel India

Inox Steel India is widely recognized as a trusted manufacturer and supplier of Boiler Tubes near Alankar Cinema, Mumbai, delivering high-temperature seamless tubes to boiler fabricators, EPC contractors, OEMs, and industrial plants across India and 40+ countries.

Whether the requirement is for ASTM A210 carbon steel boiler tubes, ASTM A213 alloy/stainless superheater tubes, or DIN 17175 high-temperature German standard tubes, we provide guaranteed quality, consistent delivery, and project-ready documentation — making us a preferred supplier for power generation, refinery, sugar, chemical, and energy sectors. Our tubes are designed for extreme operating conditions, including: High-pressure steam, Elevated temperatures up to 650°C, Thermal cycling, Sulphur-bearing flue gases, and High creep and stress rupture environments. We hold strong stock in multiple grades and sizes, allowing us to support both urgent breakdown maintenance and large turnkey boiler projects.

Why Choose Inox Steel India for Boiler Tubes?

  1. High-Temperature & High-Pressure Reliability: Our alloy & CS boiler tubes are engineered for superheated steam systems, continuous thermal cycling, and high-pressure operation.
  2. Full Range of Boiler Standards: We supply in three globally accepted specifications: ASTM A210 (Carbon steel boiler tubes), ASTM A213 (Ferritic alloy & stainless steel tubes), DIN 17175 (High-temp German boiler tubes).
  3. Export-Ready Production: Our boiler tubes are exported to Middle East (UAE, Saudi, Oman, Qatar), Africa (South Africa, Kenya, Nigeria), Europe (Germany, Italy, Poland), and USA, Canada, Mexico, Brazil.
  4. Project Documentation Support: Every dispatch includes MTC as per EN 10204 3.1 / 3.2, Heat treatment charts, NDT reports, PMI & hydrotest results.
  5. Ideal for EPC & OEM Boiler Manufacturers: Our tubes are supplied to boiler fabricators, power EPC contractors, refinery maintenance teams, and industrial boiler manufacturers.
  6. Competitive Prices + Guaranteed Mill Quality: We offer consistent pricing and batch-wise quality control.

Industries & Applications Served

Industry Application
Power Plants (Thermal & HRSG) Superheater, reheater, economizer tubes
Oil Refineries Crude heaters, process heaters, WHRU
Sugar Mills Bagasse-fired boilers, water wall tubes
Chemical & Petrochemical Plants High-temp heat exchangers, reformers
Fertilizer Plants High-pressure steam lines
OEM Boiler Manufacturers Shell-type & water-tube boilers
Industrial Heating Systems Furnace tubes, air preheaters

Packaging & Export Handling

We follow industry-standard packing for safe delivery.

Packaging Includes

  • Bundle packing with strong steel strips, Anti-corrosion oil coating.
  • Tube-end plastic caps, Full HDPE wrapping.
  • Wooden pallets / wooden boxes for export.
  • Grade · Standard · OD × WT · Heat No. marking.

U-Bending & Special Processing

  • Stress-relieved U-bent tubes for superheaters.
  • Custom cut-to-length tubes and Bevelled ends for welding.

Shipping via: JNPT Mumbai | Mundra Port | Hazira Port.

Talk to Our Experts – Get Instant Quote

For Furnace Tubes, Boiler Tubes, Superheater Tubes, Reheater Tubes, Economizer Tubes — Inox Steel India is your trusted supplier.

Inox Steel India

52-A, Mulji Thackersi Bldg, Islampura Street, Shop No. 10, Near Alankar Cinema, Mumbai – 400 004

Email

alloy@inoxsteelindia.in, steel@inoxsteelindia.in

Phone

+91 9930796690

Grades T11, T22, 13CrMo4-5, 10CrMo9-10 are preferred for temperatures above 500°C.

Used for high-temperature service in power plants, refinery boilers, and thermal heaters.

Yes — with stress-relief heat treatment after bending.

Boiler tubes can handle 20–200 bar, depending on material and thickness.

Yes — available on request.

Inox Steel India manufactures seamless boiler tubes as per ASTM A210, A213 & DIN 17175 for high-temperature and high-pressure applications in power plants, refineries, sugar mills, and chemical boilers. Exporter to GCC, Europe, Africa & USA.
